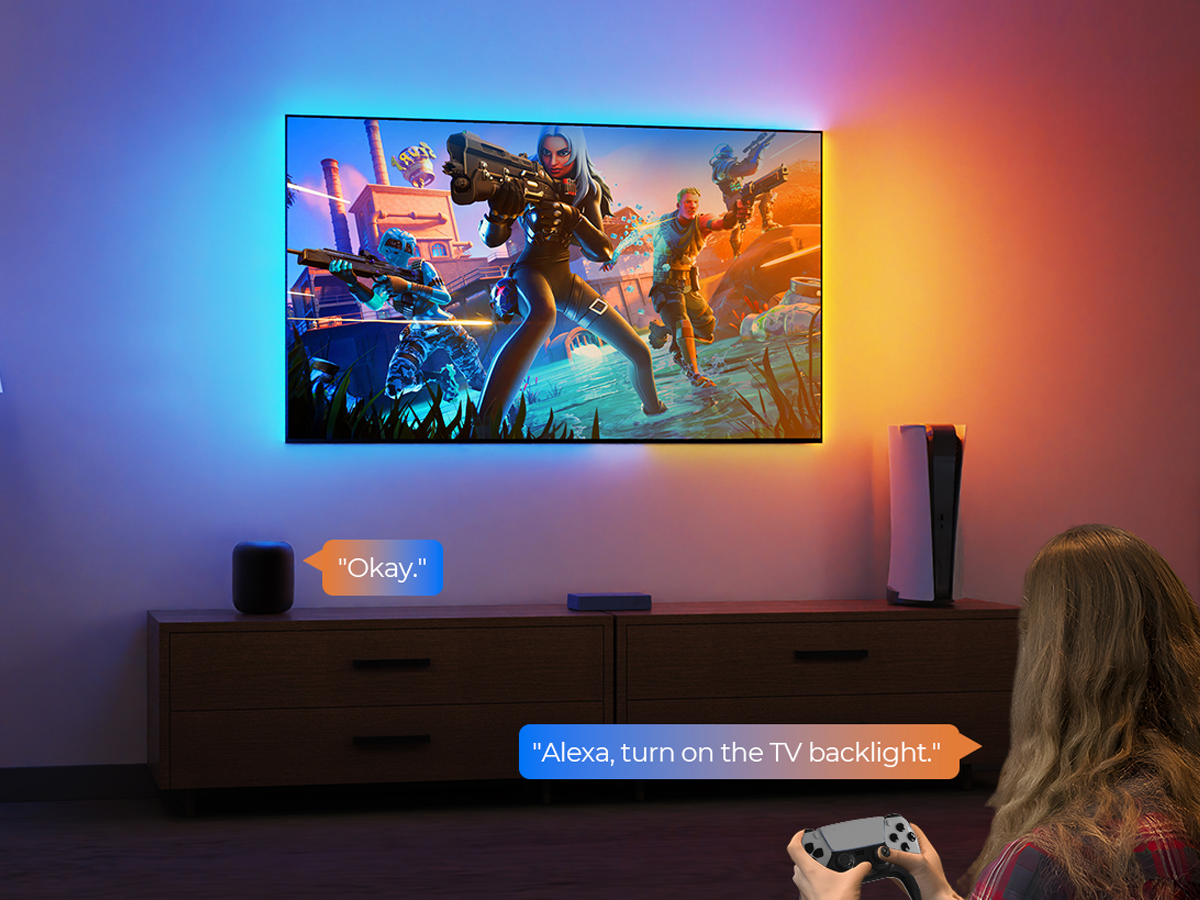

Transform your TV into a cinematic experience with an HDMI Sync TV Backlight Kit that extends colors beyond your screen. This ambient lighting system syncs with your content in real-time, creating an immersive viewing experience. This guide covers everything from unboxing to first use in under 30 minutes.
What's in the Box: Pre-Installation Checklist
Before starting, verify you have all components:
| Component | Purpose | Check |
| LED Light Strip | Creates ambient lighting | ☐ |
| HDMI Sync Box | Processes video signal for color sync | ☐ |
| HDMI Cable (2.1) | Connects sync box to TV | ☐ |
| Power Adapter | Powers the system | ☐ |
| Fixing Clips (20-30 pcs) | Secures LED strip | ☐ |
| Quick Start Guide | Reference documentation | ☐ |
Missing items? Contact support immediately for replacements before installation.
Hardware Installation: 15-Minute Setup
Step 1: Prepare Your TV Surface
Critical for adhesion success:
- Power off and unplug your TV
- Clean the back perimeter with isopropyl alcohol (70% or higher)
- Let dry completely (2-3 minutes)
Why this matters: 90% of LED strip failures come from poor adhesion. Oil and dust prevent proper bonding.
Step 2: Install Fixing Clips
Optimal placement pattern:
- Start at bottom center
- Place clips every 4-6 inches
- Maintain 1-2 inches from TV edge
- Press each clip for 10 seconds
Pro tip: For TVs 55" and larger, use all provided clips. For smaller TVs, space them 3-4 inches apart.
Step 3: Mount the LED Strip
- Start from the power connector end
- Press strip firmly into each clip until it clicks
- Ensure no sagging or loose sections
- Leave 2-inch gap at corners for smooth bends
Common mistake to avoid: Don't stretch the strip—this damages the LEDs and causes uneven lighting.
Step 4: Cable Connections (The Right Order Matters)
Connect in this exact sequence to avoid HDMI handshake issues:
-
LED Strip → Sync Box
- USB connector into "LED OUT" port
- Push until fully seated
-
Source Device → Sync Box
- Existing HDMI cable into "HDMI IN 1" port
- Supports up to 4 sources (gaming console, streaming device, etc.)
-
Sync Box → TV
- Included HDMI 2.1 cable from "HDMI OUT" to TV
- Use HDMI 2.1 port on TV for 4K/120Hz support
-
Power Connection
- Connect power adapter last
- Use surge protector recommended
Compatibility note: Works with any HDMI source but requires HDCP 2.2 for 4K content.
Software Setup: 5-Minute Configuration
Initial Pairing Process
-
Power on sequence:
- Turn on sync box (LED strip flashes white)
- Wait for breathing effect (pairing mode active)
- If no flashing: hold reset button 5 seconds
-
App connection:
- Download companion app (iOS 12+ / Android 8+)
- Enable Bluetooth and Wi-Fi
- Tap "Add Device" when strip is flashing
- Select your 2.4GHz network (5GHz not supported)
-
Firmware update:
- App prompts for update on first connection
- Takes 3-5 minutes
- Don't power off during update
Features & Optimization Settings
Core Sync Modes
| Mode | Best For | Latency | Power Usage |
|---|---|---|---|
| Video Sync | Movies/TV | 40-50ms | Medium |
| Game Mode | Gaming | <20ms | High |
| Music Sync | Audio visualization | Real-time | Low |
| Ambient | Static colors | N/A | Lowest |
Performance Settings
Brightness:
- Movies: 60-70% (reduces eye strain)
- Gaming: 80-100% (maximum immersion)
- Daily use: 40-50% (extends LED lifespan)
Sync Intensity:
- Subtle: 30% (minimal distraction)
- Balanced: 60% (recommended default)
- Vivid: 100% (maximum effect)
Color Calibration:
- Warm (2700K): Evening viewing
- Neutral (4000K): Balanced colors
- Cool (6500K): Matches most TV settings
Advanced Features
Scene Detection: Automatically adjusts sync algorithm based on content type
Black Bar Detection: Ignores letterbox areas for accurate color matching
Multi-Zone Control: Customize different TV edges independently
Troubleshooting Common Issues
Sync Box Not Detected
- Verify all cables fully inserted
- Try different HDMI ports
- Power cycle: Unplug for 30 seconds
- Reset device: Hold button 10 seconds
Colors Don't Match Screen
- Enable "Enhanced Color" in app settings
- Adjust white balance to match TV
- Reduce sync intensity if oversaturated
- Check HDMI cable supports required bandwidth
No 4K/HDR Pass-through
- Confirm using HDMI 2.1 cables
- Enable "Enhanced HDMI" on TV
- Update sync box firmware
- Check source outputs 4K signal
Wi-Fi Connection Drops
- Move router closer (within 30 feet)
- Switch to 2.4GHz network
- Reduce interference from other devices
- Consider ethernet adapter for sync box
Performance Specifications
| Specification | Details |
|---|---|
| Max Resolution | 4K @ 120Hz, 8K @ 60Hz |
| HDR Support | HDR10, HDR10+, Dolby Vision |
| Input Lag | <1ms pass-through |
| LED Count | 60-90 LEDs (size dependent) |
| Power Consumption | 15-25W active |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| App Compatibility | iOS 12+, Android 8+ |
Quick Start Summary
Total setup time: 20-30 minutes
- Clean TV back with alcohol
- Install clips around perimeter
- Mount LED strip in clips
- Connect: Strip → Sync Box → TV
- Download app and pair device
- Select "Video Sync" mode
- Adjust brightness to 60%
Your immersive lighting system is ready. For best results, dim room lights and position TV 6-12 inches from wall.
FAQ
Does this work with all TVs?
Yes, any TV with HDMI input. Optimal with 43-85 inch displays.
Will it affect gaming performance?
No. Less than 1ms input lag in pass-through mode. Game Mode reduces sync processing to under 20ms.
Can I use multiple sync boxes?
No, one sync box per TV. Multiple TVs need separate systems.
Does it work with built-in TV apps?
No, only with external HDMI sources. Smart TV apps bypass the sync box.
What's the LED lifespan?
50,000 hours (17 years at 8 hours daily use).
